Core Product Features

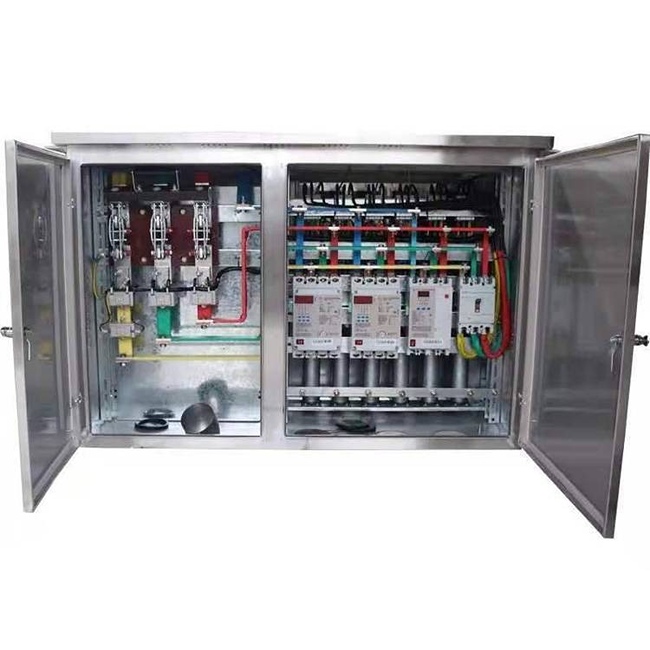

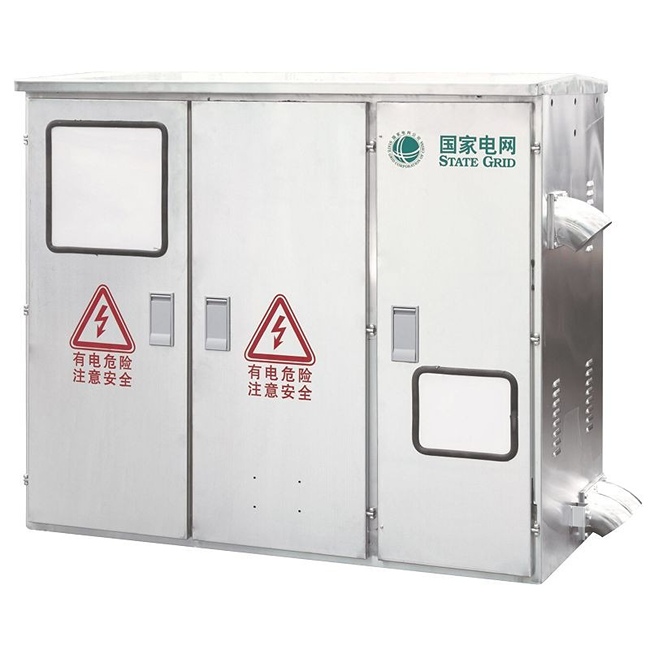

The JP series low voltage integrated distribution box (also known as metering distribution box / power distribution box) is a low voltage terminal power distribution equipment independently developed and produced by our company, which integrates electric energy metering, power distribution control, overload protection and short circuit protection. The product fully complies with international IEC standards, domestic GB industry standards and power industry DL/T standards, and is one of the most widely used low voltage distribution terminal equipment in urban and rural power grids, industrial and mining enterprises, and civil buildings. Its core performance advantages are as follows:
Application Scenarios
This product is widely used in low voltage power distribution systems of urban and rural power grid transformation, rural power distribution areas, industrial and mining enterprises, industrial parks, civil buildings, commercial complexes, hospitals, schools, municipal engineering, data centers and other places. It is suitable for electric energy metering, power distribution, motor control, lighting distribution and reactive power compensation in 50/60Hz, 220V/380V low voltage power grids, and is the core equipment of low voltage power distribution terminals.
Complete climate control, automated feeding/egg collection, and manure drying systems. (Exported to 30+ countries)
Water treatment plants must operate reliably around the clock, often in remote locations. Unplanned downtime, high energy consumption, and inefficient manual processes are common pain points.
Mining operations demand rugged, reliable electrical equipment capable of performing in harsh conditions—extreme temperatures, dust, moisture, and vibration.
Food processing facilities require strict hygiene standards, precise temperature control, and reliable production line uptime.
Non-ferrous metal processing—including aluminum, copper, and rare earth refining—involves high-temperature operations, large electrical loads, and complex process control.
Residential and commercial communities need reliable, safe, and efficient power distribution.
Our Product Advantages and Rich Application Cases
As a professional supplier of high and low voltage power transmission and distribution equipment, our JP series distribution boxes have been implemented in thousands of projects nationwide, covering urban and rural power grid transformation, industrial park construction, municipal engineering, commercial real estate, medical education and other fields, and have accumulated rich experience in project implementation and customized services. Our company has a complete high and low voltage power distribution product system, covering high voltage switchgear (KYN28 series), low voltage fixed switchgear (GGD series), low voltage withdrawable switchgear (GCS series), power distribution cabinet (XL-21 series), integrated distribution box (JP series) and other full series of power distribution equipment. We can provide one-stop overall solutions for power distribution systems from scheme design, customized product production, factory full-item inspection to on-site installation guidance and after-sales operation and maintenance, fully meeting the diversified power distribution needs of different projects and customers, and escorting the safe and stable operation of customers’ power systems.
Technical Parameters
| Category | Parameter | Value |
| Electrical Data | Rated Working Voltage | AC 220V/380V |
| Rated Insulation Voltage | 660V | |
| Rated Frequency | 50Hz / 60Hz | |
| Max. Rated Working Current | Up to 630A | |
| Rated Short-time Withstand Current (1s) | Up to 15kA / 20kA / 30kA | |
| Rated Peak Withstand Current | Up to 31.5kA / 40kA / 63kA | |
| Rated Impulse Withstand Voltage | 8kV | |
| Metering Accuracy | Class 0.5S / Class 1.0 (Standard) | |
| General Data | Protection Degree | IP30 / IP40 (Standard); IP54 / IP65 Optional (Outdoor) |
| Earthing System | TT, IT, TN-S, TN-CS | |
| Standard Compliance | IEC 60439-1, GB 7251.3, DL/T 375 | |
| Environmental Conditions | Installation Type | Wall-mounted / Floor-mounted / Outdoor Floor-mounted Optional |
| Ambient Temperature | -5℃ ~ +40℃ (24h Average ≤ +35℃); Outdoor type -25℃ ~ +55℃ Optional | |
| Altitude | ≤ 2000m Above Sea Level | |
| Relative Humidity | ≤ 50% at +40℃; Higher humidity allowed at lower temperatures (e.g. 90% at +20℃) | |
| Cabinet & Construction | Frame Material | High-quality cold-rolled steel sheet, welded / assembled structure |
| Surface Treatment | High-voltage electrostatic epoxy powder coating | |
| Standard Cabinet Color | RAL 7035 (Light Gray); RAL 6005 (Green, Grid Special) Optional | |
| Cable Entry | Top / Bottom / Side cable entry optional | |
| Door Type | Single-door / Double-door / Multi-door optional |
Series Selection Guide
| Model | Rated Current (A) | 1s Short-time Withstand Current (kA) | Standard Protection Degree | Installation Type |
| JP-100 | 100 | 15 | IP30 / IP40 | Wall-mounted / Floor-mounted |
| JP-200 | 200 | 15 | IP30 / IP40 | Wall-mounted / Floor-mounted |
| JP-400 | 400 | 20 | IP40 | Floor-mounted / Outdoor Floor-mounted |
| JP-630 | 630 | 30 | IP40 / IP54 | Floor-mounted / Outdoor Floor-mounted |
