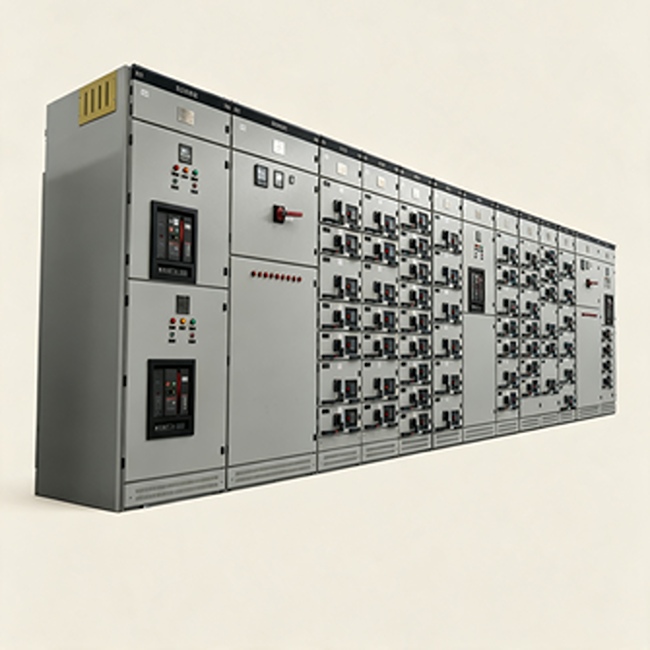

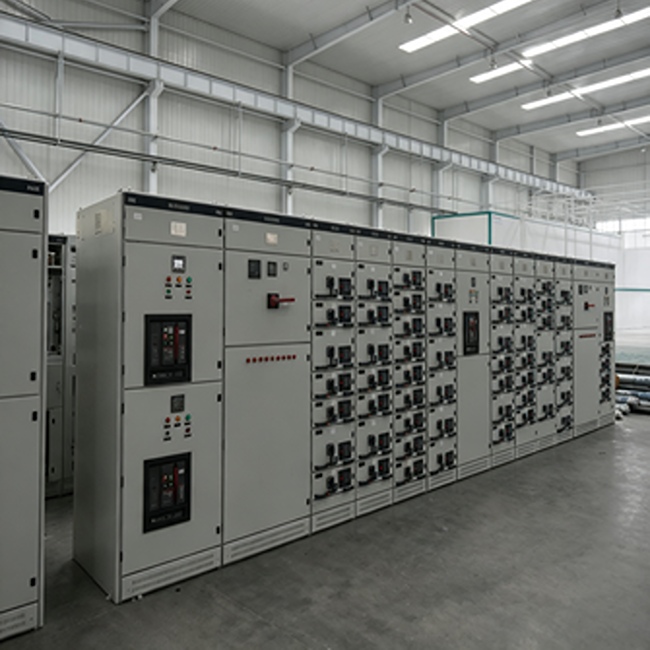

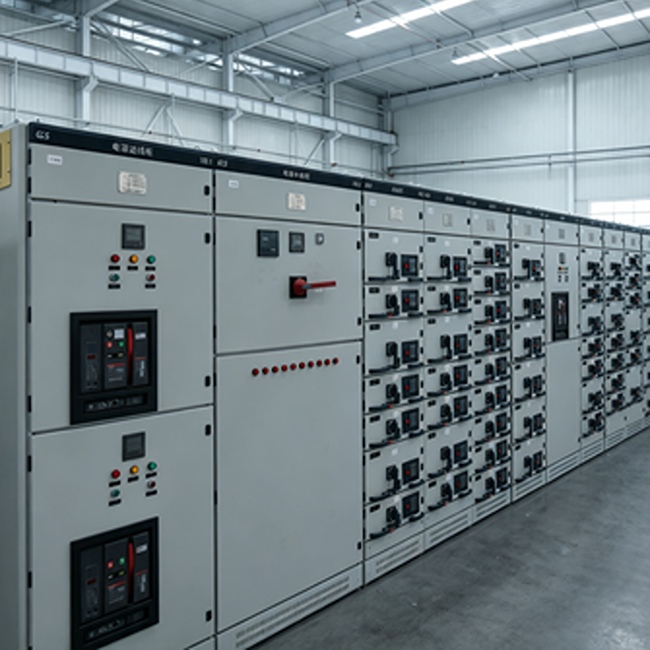

GCS Low Voltage Draw-out Switchgear

Product Description

GCS low voltage withdrawable switchgear is a modular drawer-type power distribution equipment and our core high-end low-voltage product, complying with both IEC and national standards. It adopts 8MF steel assembled frame with a safe three-compartment isolated structure. The maximum rated current of main busbar reaches 4000A, and the short-time withstand current can hit 80kA, leading the industry in short-circuit resistance. Functional units adopt standardized drawers (1/2 unit & standard unit). Single faulty loop can be pulled out for maintenance without cutting off power of the whole section, greatly improving maintenance efficiency. Optional IP30~IP40 protection grade, and drawers are equipped with mechanical interlock to prevent misoperation and live plugging risks. It supports integrated modules of power distribution, motor variable frequency control, capacitor compensation and metering protection. Optimized cabinet ventilation duct ensures stable temperature rise under long-term full load, and loops can be flexibly added or removed according to load demand with strong customizability.

Application Introduction

It is widely applied in scenarios requiring high power supply continuity and maintenance efficiency, such as large factory production lines, rail transit, large commercial complexes, hospital operating rooms, IDC data centers, large energy storage power stations and office building core power rooms, for centralized motor control, large-capacity power distribution and uninterrupted load power supply. Our full range of high & low voltage products can fully match GCS with KYN28 high voltage switchgear, GGD fixed cabinet and various terminal distribution boxes to realize integrated high-low voltage supply. With abundant supporting cases of new energy, rail transit and large public construction projects, we provide one-stop services including power system scheme design, complete set manufacturing, factory type test, on-site commissioning and long-term operation maintenance. Full industrial chain supporting avoids multi-party procurement, greatly shortening project delivery cycle and reducing customers’ comprehensive purchasing and management costs.
