New Energy Prefabricated Box Substation

Product Description

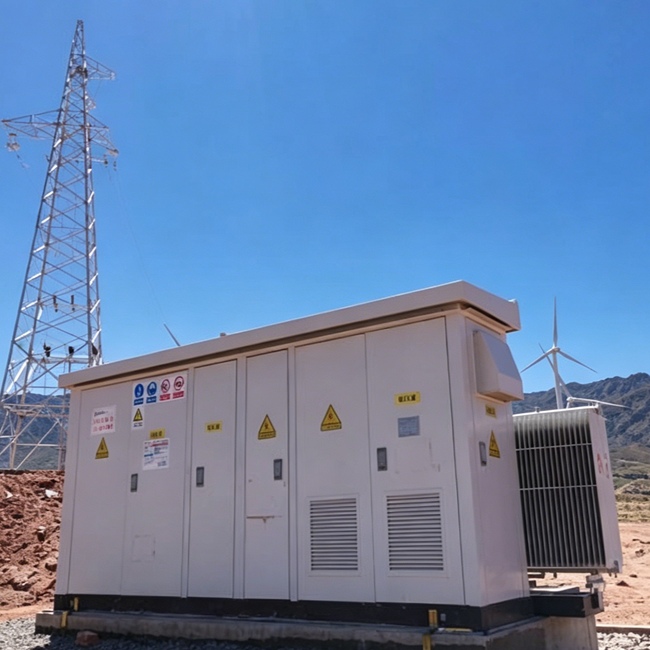

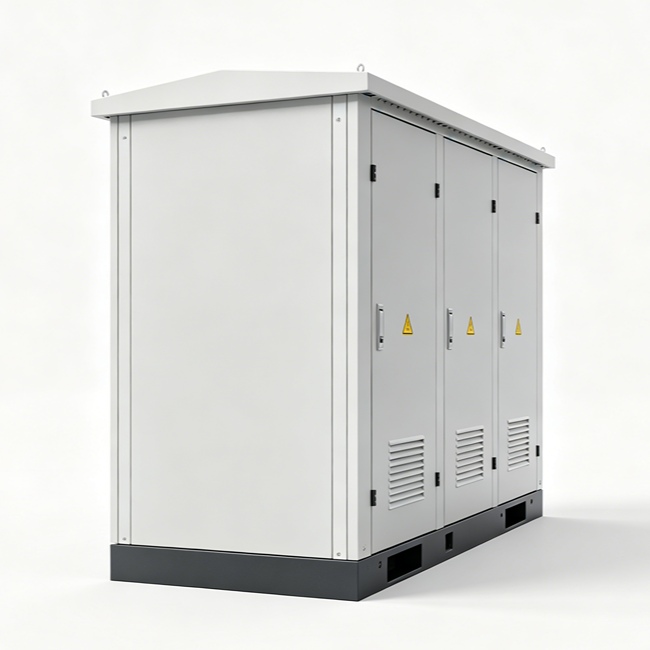

New Energy Box Substation is specially customized prefabricated power transformation & distribution equipment for photovoltaic power stations, onshore & offshore wind farms and energy storage power stations, compliant with IEC 62271, IEC 60076 and new energy industry special standardssxqtdl.com. It adopts European three-compartment modular structure, optimized for the fluctuation characteristics of renewable energy power output, with enhanced anti-overload, anti-harmonic and anti-surge performance compared with conventional box substations. Two mainstream configurations are available: PV step-up box substation and wind power booster box substation. The transformer adopts high-efficiency low-loss amorphous alloy or SCB14 dry-type transformer to reduce power generation loss; built-in special anti-harmonic filter, DC lightning protection device, SVG reactive power dynamic compensation system, intelligent remote telemetry & telecontrol module, supporting 4G/optical fiber communication to realize real-time data upload to cloud monitoring platform. The cabinet is upgraded to IP54 full rainproof & dustproof structure, with thickened heat dissipation channel to adapt long-term full-load fluctuating power output; optional salt-fog resistant stainless steel shell for coastal offshore wind projects, anti-sand coating for desert photovoltaic bases. Equipped with arc suppression, overvoltage, overcurrent, temperature over-limit multi-layer protection logic to adapt unstable renewable energy input. Relying on our full high-low voltage product matrix, we can match new energy box substations with MNS/GCS withdrawable low voltage cabinets, KYN28 HV switchgears and JP distribution boxes to form complete new energy power station one-stop supporting solutions, with massive overseas photovoltaic & wind power project delivery experience.

Application Scenarios

• Large ground photovoltaic power stations, rooftop distributed PV systems, agricultural complementary PV bases;
• Onshore wind farms, coastal offshore wind turbine booster stations;
• Lithium-ion energy storage power stations, optical storage integrated microgrid projects;
• New energy industrial park self-generation & self-consumption power distribution system;
• Overseas renewable energy EPC projects, desert photovoltaic bases, island wind-solar hybrid power stations.

livestock farming

Complete climate control, automated feeding/egg collection, and manure drying systems. (Exported to 30+ countries)

Water & Wastewater Treatment Automation

Water treatment plants must operate reliably around the clock, often in remote locations. Unplanned downtime, high energy consumption, and inefficient manual processes are common pain points.

Mining Equipment Control Systems

Mining operations demand rugged, reliable electrical equipment capable of performing in harsh conditions—extreme temperatures, dust, moisture, and vibration.

Food Processing Automation

Food processing facilities require strict hygiene standards, precise temperature control, and reliable production line uptime.

Non-Ferrous Metal Processing Automation

Non-ferrous metal processing—including aluminum, copper, and rare earth refining—involves high-temperature operations, large electrical loads, and complex process control.

Community Power Distribution

Residential and commercial communities need reliable, safe, and efficient power distribution.

Our Supporting Advantages

We are a one-stop supplier for full new energy power station equipment. Our new energy box substations can be matched with self-produced high voltage cabinets, low voltage withdrawable cabinets and terminal distribution boxes to realize integrated delivery of the whole power station. We provide professional new energy electrical scheme design, support customized anti-harmonic, anti-salt fog and high plateau modification, and provide complete IEC/CE certification documents for overseas renewable energy bidding projects, with stable delivery cycle and full life-cycle after-sales technical support.

Technical Parameters
