In modern manufacturing, new energy power stations, water treatment plants, and industrial parks, high and low voltage distribution systems serve as the core infrastructure of all production operations. Traditional GGD low-voltage switchgear, KYN28 high-voltage switchgear, and conventional power distribution solutions only support basic power transmission and overload protection. They cannot realize real-time data monitoring, intelligent early warning, and remote centralized management, resulting in high operational costs, frequent unplanned downtime, and serious energy loss.
With the rapid iteration of Industry 4.0 and Industrial Internet of Things (IIoT) technology, the combination of IIoT edge computing, PLC industrial control, and cloud SCADA platforms has completely upgraded traditional power distribution modes. Intelligent high and low voltage distribution systems have become the standard configuration for factory electrical automation transformation, solving the long-standing pain points of industrial power management.

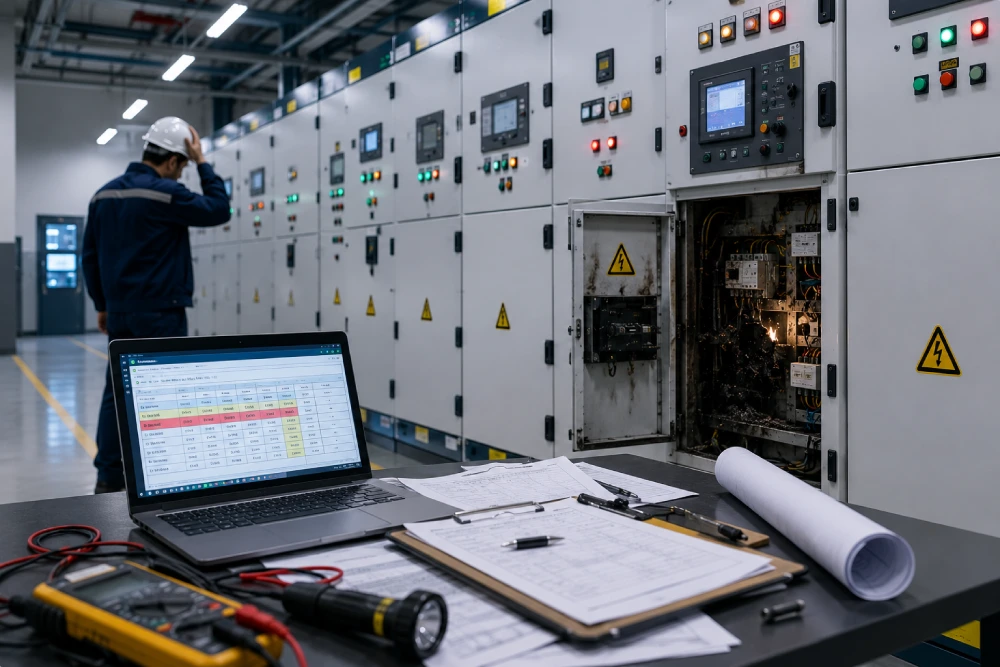

1. Core Defects of Traditional Industrial Power Distribution Systems
ost traditional industrial power distribution facilities rely on manual inspection and passive maintenance, with obvious technical limitations that restrict factory digital upgrading:
2. Technical Architecture of IIoT Smart Power Distribution System
The intelligent power distribution solution based on IIoT industrial IoT adopts a five-layer end-edge-cloud collaborative architecture, which is highly compatible with various high and low voltage switchgear models and industrial automation equipment:
- Perception Layer PLC programmable logic controllers realize local logic control, including automatic switching, overload protection, reactive power compensation, and fault interlock response. The system can operate independently offline to ensure uninterrupted production.
- Local Control Layer PLC programmable logic controllers realize local logic control, including automatic switching, overload protection, reactive power compensation, and fault interlock response. The system can operate independently offline to ensure uninterrupted production.
- Edge Transmission Layer Industrial IIoT gateways support Modbus, Profinet, Ethernet, and 4G/5G wireless transmission protocols. It realizes on-site edge computing, filters invalid data, reduces cloud bandwidth pressure, and adapts to harsh industrial electromagnetic interference environments.
- Cloud Monitoring Layer The cloud-native SCADA platform visualizes the operation status of all factory power distribution equipment, supports digital twin display, multi-terminal synchronous viewing, and real-time fault alarm.
- Application Management Layer Realize refined functions such as energy consumption statistics, equipment predictive maintenance, power report generation, and load optimization, and support data docking with MES and ERP production systems.
3. Industrial Value of IIoT Intelligent Power Distribution Automation
4. Typical Application Scenarios
This solution is widely applicable to discrete manufacturing workshops, new energy photovoltaic energy storage power stations, municipal water treatment plants, mining and heavy industry, and other industrial scenarios, supporting both old equipment renovation and new factory integrated construction.
Conclusion
IIoT industrial IoT technology has completely broken the technical bottleneck of traditional high and low voltage distribution, realizing the transformation from passive power supply to intelligent active management. It is the core foundation of factory electrical automation and digital transformation.
Henan Automation Control Technology Co., Ltd. provides one-stop intelligent power distribution solutions, including customized high and low voltage switchgear, PLC control systems, industrial IIoT gateways, and private cloud SCADA platforms. All products comply with CE/UL international standards. Contact our engineering team to get a free industrial power distribution upgrading solution and quotation.
