Pole Mounted Transformer

Share to

Our full series of pole mounted distribution transformers are oil-immersed overhead power conversion units manufactured per global ANSI, IEEE and IEC standards, covering single-phase conventional, CSP self-protected and three-phase square models to fit worldwide grid requirements.

Key Parameters

Capacity Range: Single phase:5kVA~100kVA; Three phase:30kVA~500kVA
Connection Group: Single phase:Ii0; Three phase:Dyn11
Cooling Mode: ONAN oil natural cooling

Get A Quote

Send Email

Product Description

Our full series of pole mounted distribution transformers are oil-immersed overhead power conversion units manufactured per global ANSI, IEEE and IEC standards, covering single-phase conventional, CSP self-protected and three-phase square models to fit worldwide grid requirements. With capacities ranging from 5kVA to 500kVA, these robust cylindrical & square tanks feature weather-resistant anti-corrosion coatings, standardized terminal layouts and heavy-duty pole mounting brackets for reliable outdoor overhead operation. Backed by over a decade of cross-continental export experience, we deliver tailored voltage schemes, full test certification support and cost-effective bulk supply solutions for power contractors, utility wholesalers and rural electrification projects globally.

Core Product Features

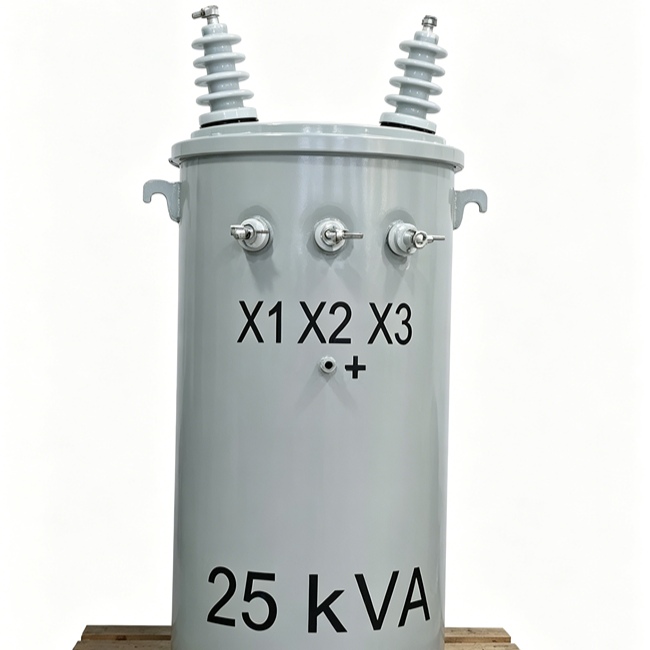

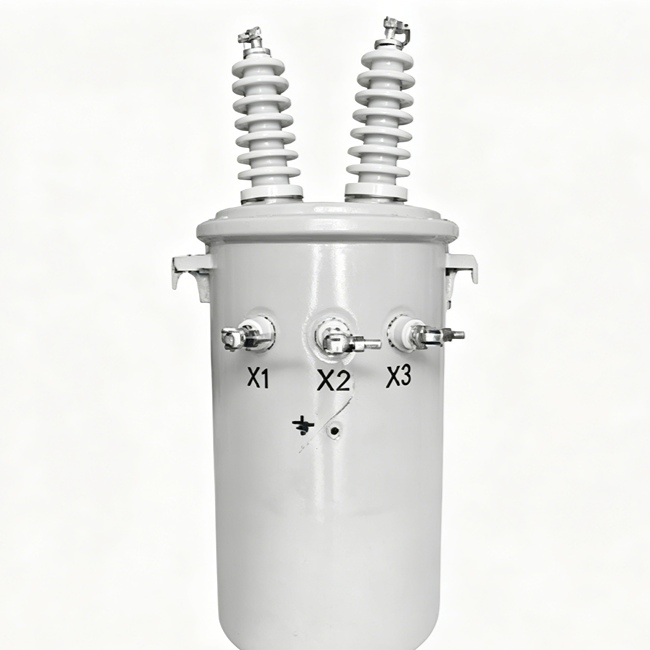

Conventional Single-Phase Cylindrical Pole Mounted Transformer

This ANSI/IEEE standard oil-filled transformer features a simple cylindrical tank with external mounting brackets for lightning arresters and fuses. It supports customizable voltage combinations from 5kVA to 167kVA for overhead residential power delivery. We have long-term export experience supplying bulk units to North America, Australia, Latin America and Southeast Asia rural grid contractors.

CSP Completely Self-Protected Single-Phase Pole Transformer

Integrated with internal primary fuses, secondary breakers and surge arresters, this all-in-one design eliminates extra external protective hardware. It cuts on-site installation time and delivers full overload, short-circuit and lightning damage protection. We specialize in North American market shipments with 10+ years of utility-grade supply experience for US and Canadian suburban distribution networks.

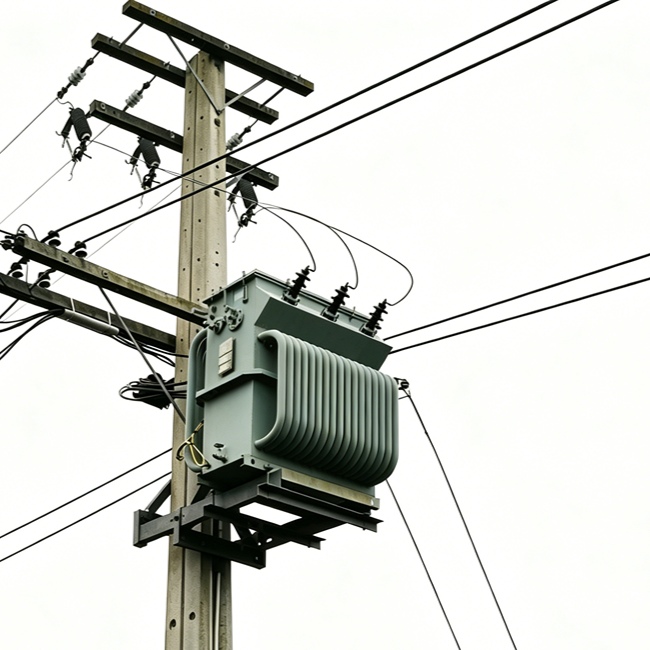

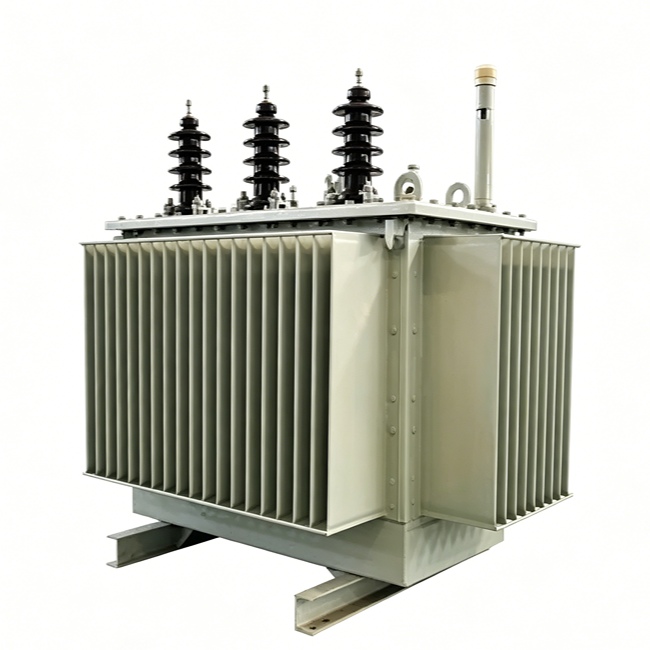

Three-Phase Square Pole Mounted Distribution Transformer

Compact square oil immersed unit engineered for 50Hz power grids with complete heat dissipation radiators and pole mounting lugs. Optimized for large-scale rural electrification and village overhead power supply projects. Our factory has stable export records serving power distributors across Southeast Asia, East Africa and Central Africa national grid renovation programs.

Technical Parameters

Category	Detailed Specifications
Product Type	Single Phase / Three Phase overhead pole transformer
Frequency	50Hz / 60Hz customizable
Capacity Range	Single phase:5kVA~100kVA; Three phase:30kVA~500kVA
Connection Group	Single phase:Ii0; Three phase:Dyn11
Cooling Mode	ONAN oil natural cooling
Tank Design	Fully sealed leak-proof oil tank, galvanized anti-rust tank body
Installation Structure	Lightweight body, dedicated pole mounting brackets & lifting lugs
Optional Parts	Primary & secondary lightning arresters
Working Condition	High temperature, dust, low maintenance rural environment
Standard Complied	IEC 60076
Application	Africa & Southeast Asia rural electrification, mountain overhead power grid, remote village power supply
